Group Management #

The Group Management component provides users with tools to organize, configure, and customize groups within the dashboard. It allows users to manage the structure and layout of groups efficiently, ensuring better organization and usability.

With these functionalities, users can efficiently manage and structure groups within the dashboard, improving usability and customization.

Group Management Buttons

Add Component #

Opens a dialog where users can add a component to the selected group.

Add Component

Add Component Dialog

Change Group Title #

Opens a dialog where users can rename the selected group for better organization.

Change Group Title

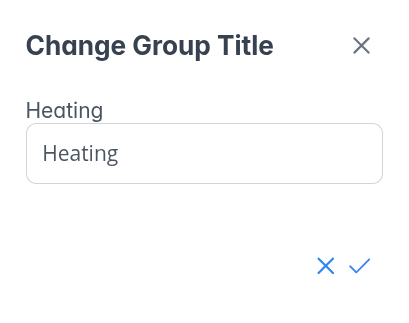

Change Group Title Dialog

Reorder Components #

Opens a dialog where users can change the order of components within the selected group.

Reorder Components

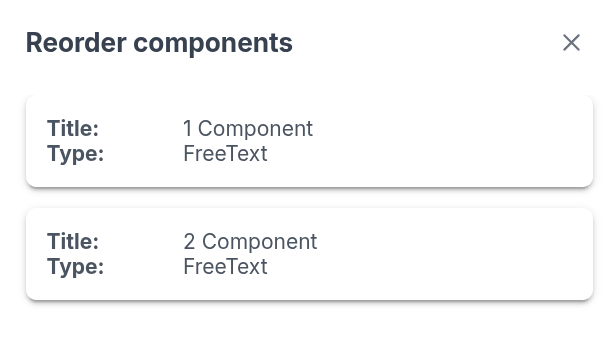

Reorder Components Dialog

Move Group #

Opens a dialog where users can select a different dashboard or tab to move the current group.

Move Group

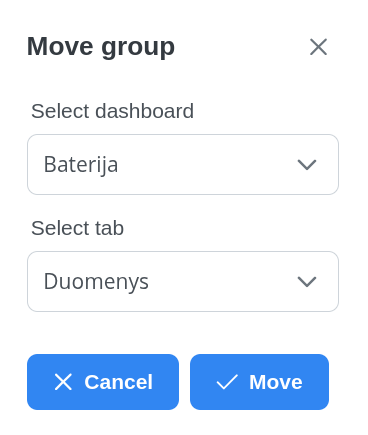

Move Group Dialog

Group Configurator #

Opens a dialog where users can configure the group’s display layout and alignment:

  • Display Layout: Choose between vertical or horizontal component arrangement.
  • Vertical Align: Options include start, center, end, or stretch.
  • Horizontal Align: Options include start, center, end, space-between, space-around, or space-evenly.

Based on this configuration, components within the group will be arranged accordingly.

Group Configurator

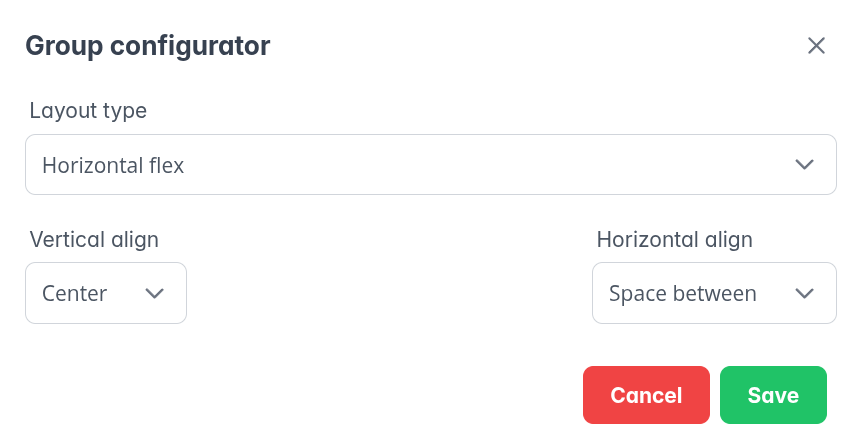

Group Configurator Dialog

Remove Group #

Deletes the selected group from the dashboard.

Remove Group
