Component Management #

The Component Management feature allows users to efficiently configure, duplicate, move, or remove components within the dashboard. By right-clicking on a component, a menu appears with four key options for managing the selected component.

With these tools, users can effectively manage their components, ensuring a structured and customizable dashboard experience.

Component Management

Edit Config #

Opens a dialog where users can modify the configuration of the selected component, including:

  • Title: Set or modify the component’s title.
  • Component Type: Define the type of component.
  • Width: Adjust the component width (0-12 scale).
  • Title Size: Customize the size of the title.
  • Title Alignment: Align the title (left, center, or right).
  • Hide Component Header: Option to hide the header for a cleaner layout.
  • Collapsible Option: Enable the component to be collapsible or set it to be collapsed by default.
  • Component Type Editor: Displays settings specific to the selected component type.

Edit Config

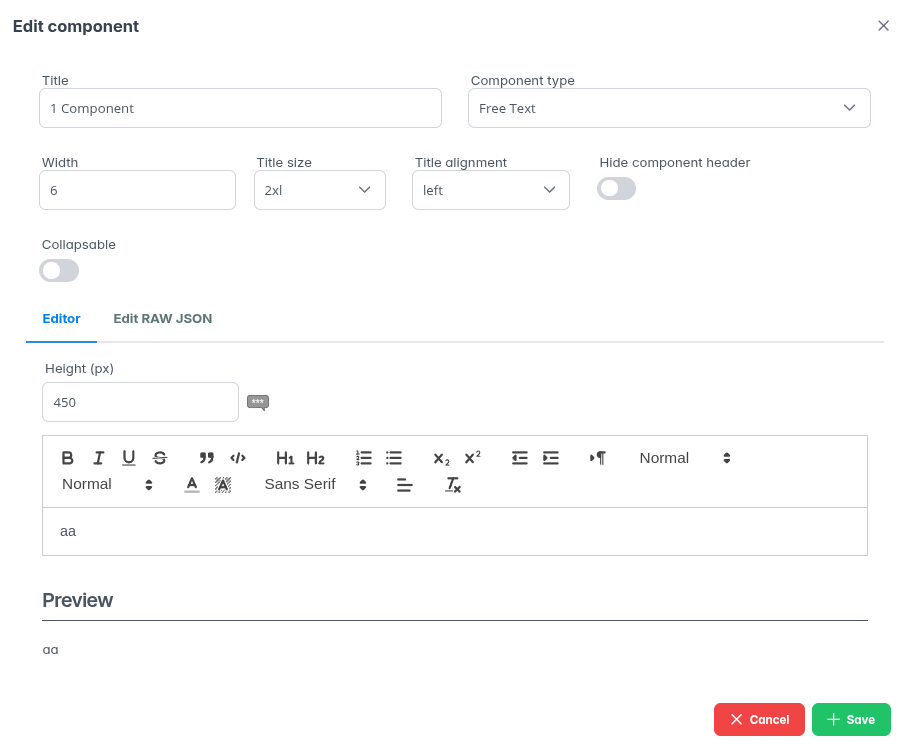

Edit Config Dialog

Duplicate Component #

Creates an exact copy of the selected component within the current tab group.

Duplicate Component

Move Component #

Opens a dialog where users can select the target dashboard, tab, and group to move the component to a different location.

Move Component

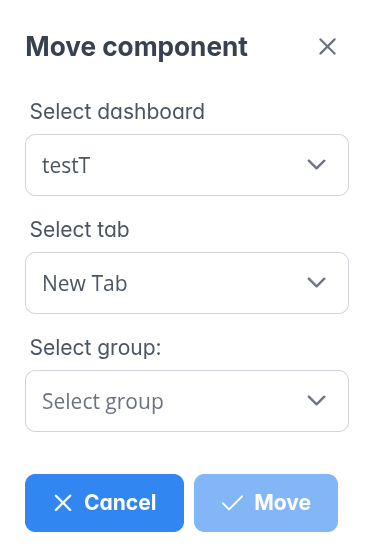

Move Component Dialog

Delete Component #

Removes the selected component from the dashboard.

Delete Component
